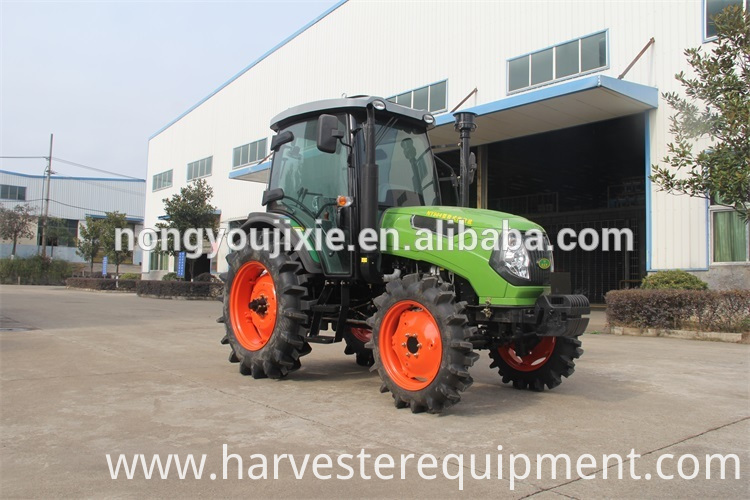

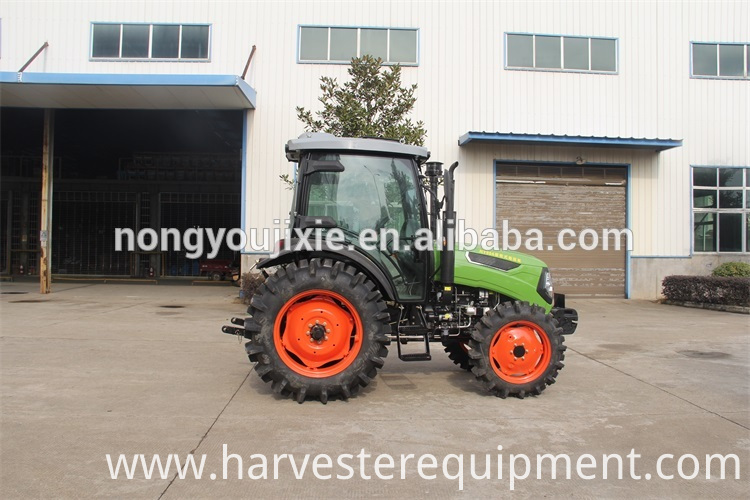

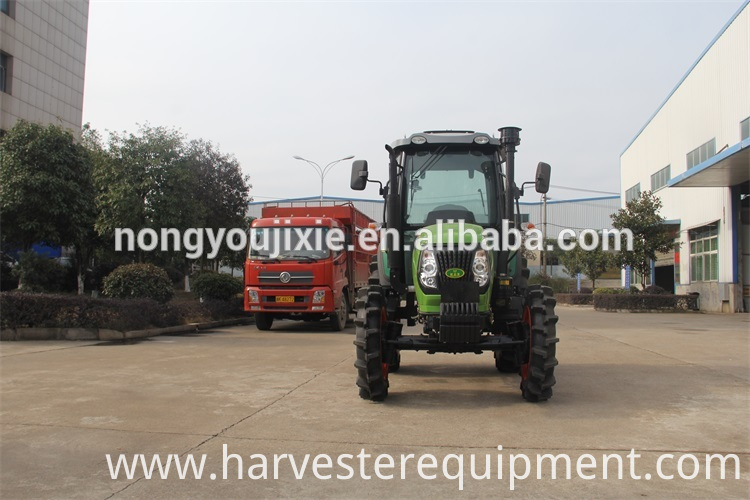

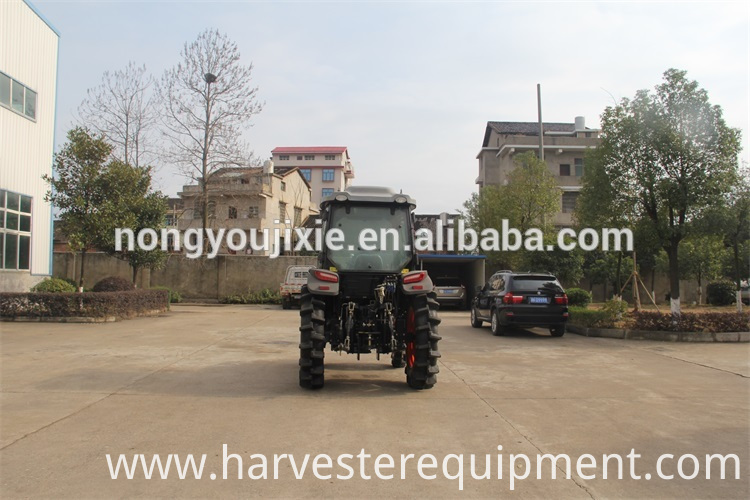

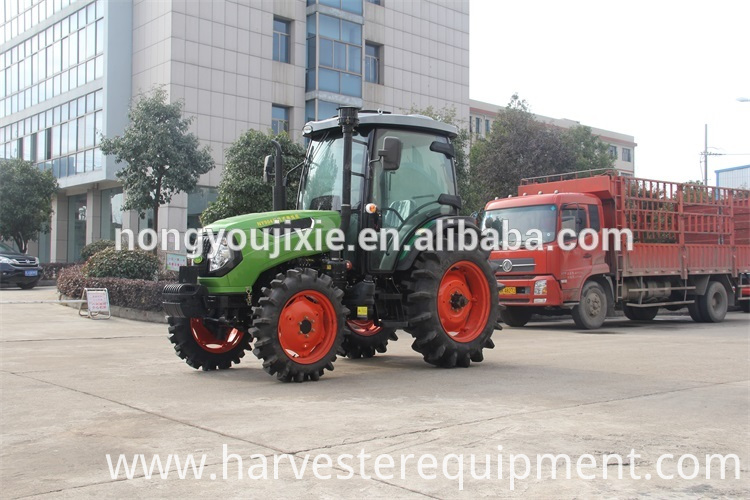

Best china cheap 4*4 tractor for small farm
Main Feature:
1.With the quanchan engine,the structure is compact and the power is strong.
2.The front axle of the oil cylinder in the enhanced type,the bearing capacity is strong;Adopt hydraulic steering,flexible and easy to operate.
3.Luxurious seats,adjustable steering wheel, side hydraulic soft shaft control,increase the comfort of operation;
4.Four-column deluxe cab,beautiful and openly;
5.Double speed power output,according to the job requirements,540/760r/min and 540/1000
r/min can be chosen;
6.Pressure lifting device,2 hydraulic output,lifting powerStrong,easy to use and maintenance
| Unit | Size |
Model | / | NY904 |
System | / | Four wheel drive |
Dimension | mm | 4010*1870*2650 |
Crawler touch the ground length | mm | 2065 |
Distance of wheel | mm | 1470,1570,1670,1770/1420~1620 |
Wheel distance adjustment | / | Step speed Adjustment |
Min Gap to the ground | mm | 360 |
Min Weight | kg | 2735 |
Standard match weight(Front/Back) | kg | 144/360 |
Max match Weight(Front/Back) | kg | 144/360 |
Gear Shaft | Advance/reverse/crawl | / | 12/12/0 |
Main gear/range shaft /others | / | 4/3/2 |
Theoretical speed | Km/h | Advance shaft :2.91-33.59 Reverse shaft:2.29-29.74 |
Engine and clutch connection mode | / | Direct connect |
Engine start mode | / | Electric start |
Engine manufacturer | kw | Anhui quanchai |
Max traction | kn | 16.5 |
Engine Model | / | 4C6-90U32 |
Standard voltage | kw | 66.2 |
Standard ratate speed | r/min | 2400 |
Looking for ideal
Mini Tractor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cheap Farm Tractors are quality guaranteed. We are China Origin Factory of Mini Tractor Price. If you have any question, please feel free to contact us.
Product Categories : Garden Tractor
Mr. yongfeng.liu
